There are many different methods that one can use for protecting PostgreSQL. This time we are going to introduce you to the pgbackrest utility.
- Install the IBM Spectrum Protect Client API
# rpm -ivh gsk*.rpm
# rpm –ivh *api*.rpm
# dpkg -i gsk*.deb
# dpkg –i *api*.deb
2. Install the SPFS software
# rpm -ivh spfs*.rpm
# rpm –ivh spictera*.rpm
# dpkg -i spfs*.deb
# dpkg –i spictera*.deb
3. Configure the Spectrum Protect client
# vi /opt/Tivoli/tsm/client/api/bin64/dsm.sys
SERVERNAME spfs
TCPSERVERADDRESS tsm.backupserver.com
ERRORLOGNAME /var/log/dsmerror_spfs.log
4. Register the node on the backup server
TSM> REGISTER NODE SPFS secret DOMAIN=SPFS
5. Configure the SPFS file system
5.1 Create option file
# echo SERVERNAME spfs > /etc/spfs/dsm.opt
5.2 set initial password
# setpassword /etc/spfs/TSM.PWD
secret
5.3 Create spfs configuration
# vi /etc/spfs/spfs.opt
MOUNTPOINT /backup
NODENAME spfs
NODEPWDFILE /etc/spfs/TSM.PWD
OPTIONFILE /etc/spfs/dsm.opt

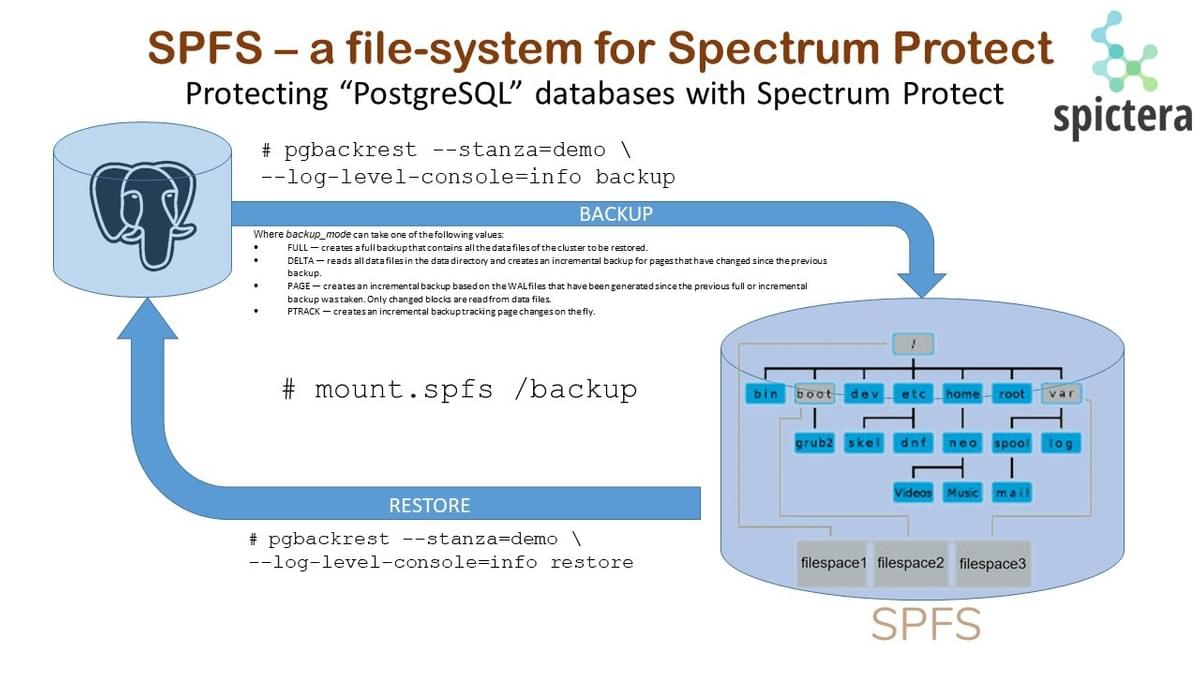

6. mounting the SPFS file system
# mkdir /backup
# mount.spfs /backup
You are now ready to start using Spectrum Protect as a file system, storing and retrieving backup data of PostgreSQL
Performing backup using pgbackrest
The configuration of PgBackRest is very easy, it consists of a configuration pgbackrest.conf file that must be edited. In my case the file is located in /etc. As specified, we will use a very basic configuration file.
Below the contents of my configuration file
A complete list can be found here
[root@pgserver etc]# cat pgbackrest.conf
[global]
repo-path=/var/lib/pgbackrest
[clustpgserver]
db-path=/var/lib/pgsql/10/data
retention-full=2
[root@pgserver etc]#
In the file above,
• repo-path is where backup will be stored,
• clusterpgserver is the name of my cluster stanza (free to take what you want as name). A stanza is the configuration for a PostgreSQL database cluster that defines where it is located, how it will be backed up, archiving options, etc.
• db-path is the path of my database files
• retention-full : configure retention to 2 full backups
A complete list can be found here
[root@pgserver etc]# cat pgbackrest.conf
[global]
repo-path=/var/lib/pgbackrest
[demo]
db-path=/var/lib/pgsql/10/data
retention-full=2
[root@pgserver etc]#
Create the stanza
$ pgbackrest — stanza=demo — log-level-console=info stanza-create
Check configuration
$ pgbackrest --stanza=demo --log-level-console=info check
Example of backing up the instance
$ pgbackrest — stanza=demo — log-level-console=info backup
Restoring from a backup
$ pgbackrest --stanza=demo--log-level-console=info restore
